Internal Bundle Cleaning Robot – Idrobox 3Combo

Category:

Description

Description

Idrobox 3Combo

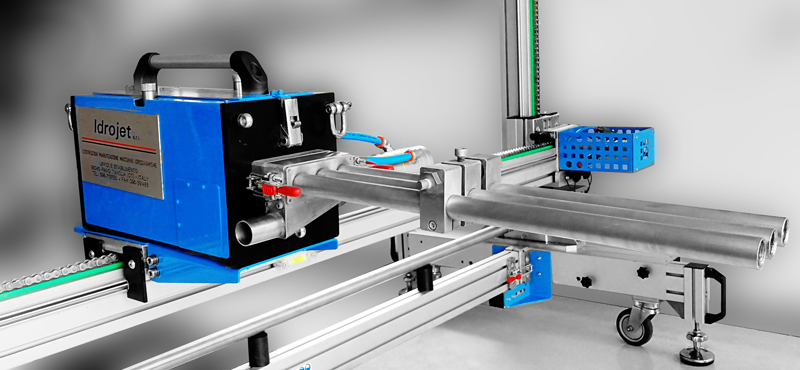

Internal Bundle Cleaning Robot Idrobox 3combo is a new modular design of the Idrobox, allows to connect 2 or 3 or 4 “Idrobox” into one “Idrobox 3combo” in order to operate with several lances at same time, with synchronized drive and variable speed of the frame.

frame Internal bundle cleaning robot Idrobox combo

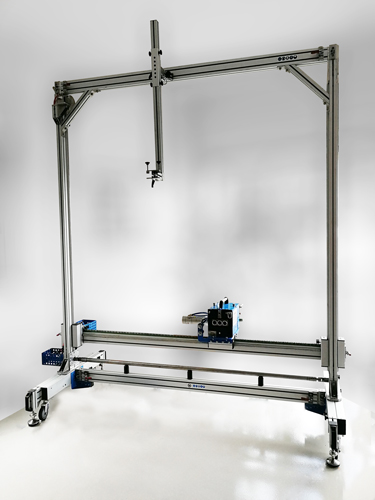

Internal Bundle Cleaning Robot Idrobox 3combo FRAME STD + CONTROL PANEL

Set including: complete pneumatic frame with air motors + air hoses and special top bracket for shell flange, positioning guiding box, 3-way remote control panel with integrated UHP safety button and complete air treatment station, air hoses, manual.

FRAME STD :

  • Working area: 1500 mm x 1500 mm
  • Speed up to : 0.1 m / s
  • Pneumatic motors max. air consumption: 1200 l/min.
  • Material: Aluminum, stainless steel
  • Ultra lightweight;
  • Safe & mobility & stability by adjustable legs with wheels;
  • Improved stability by special joint in the upper part of the frame;
  • Easy to install by one worker;
  • The modular design allows the extension of the working area;
  • Fine tuning of the lance through the variable speed of the frame with fast & slow modes;
  • Wide range of options eg. video surveillance;
  • Corrosion resistance with anodized aluminium profiles & stainless steel components.

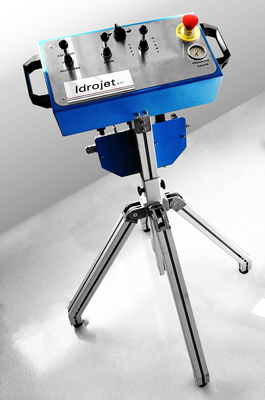

CONTROL PANEL :

  • E-STOP button integrated with safety system of UHP unit directly;
  • A 5/3-way valves based control;
  • Adjustable speed;
  • Meets all safety standards & EU Directives;
frame idrobox combo

Decoking

Pigging and decoking Machine
